CAN FD Adapter

CAN FD Adapter

Regular price $200.00 AUD
Regular price Sale price $200.00 AUD
Sale Sold out
 More payment options

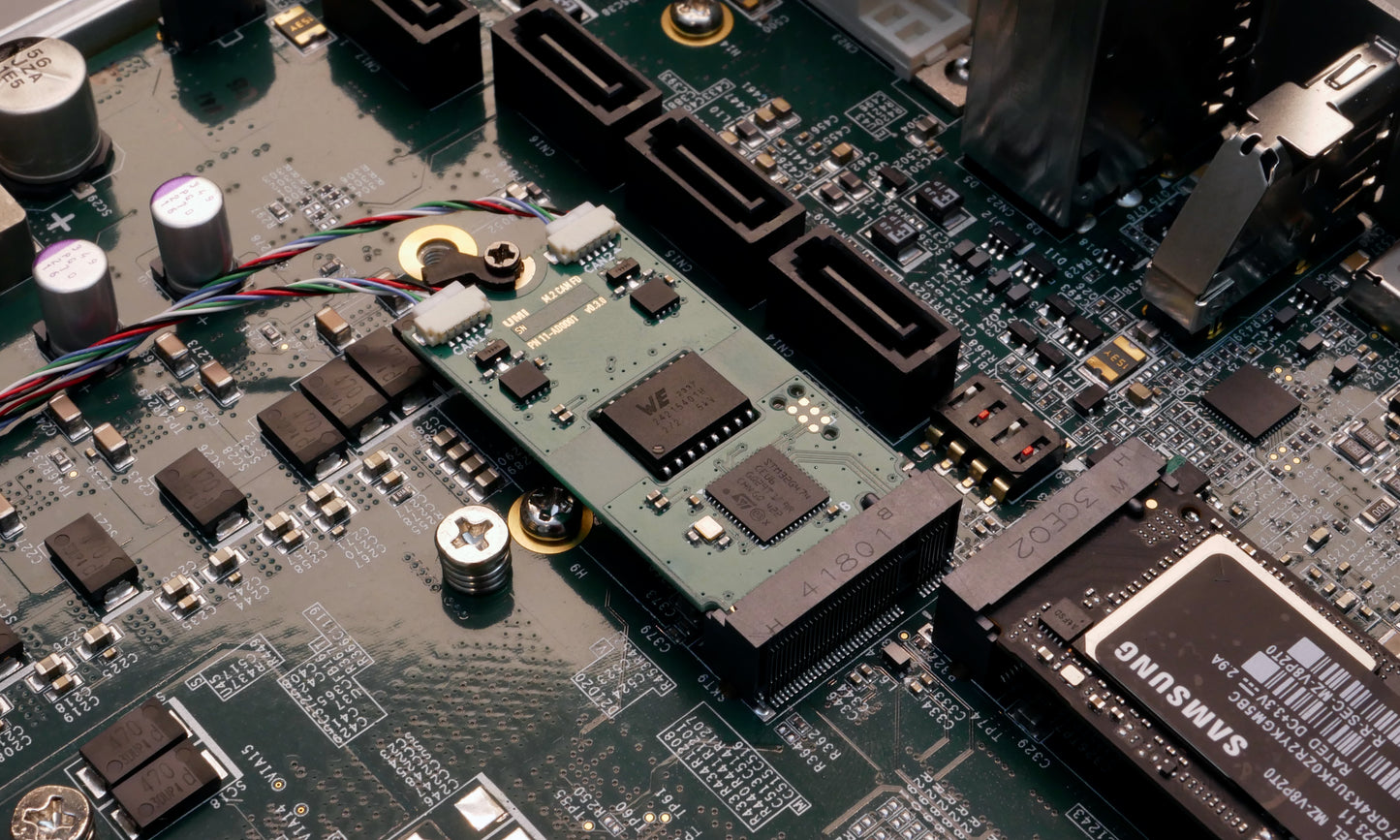

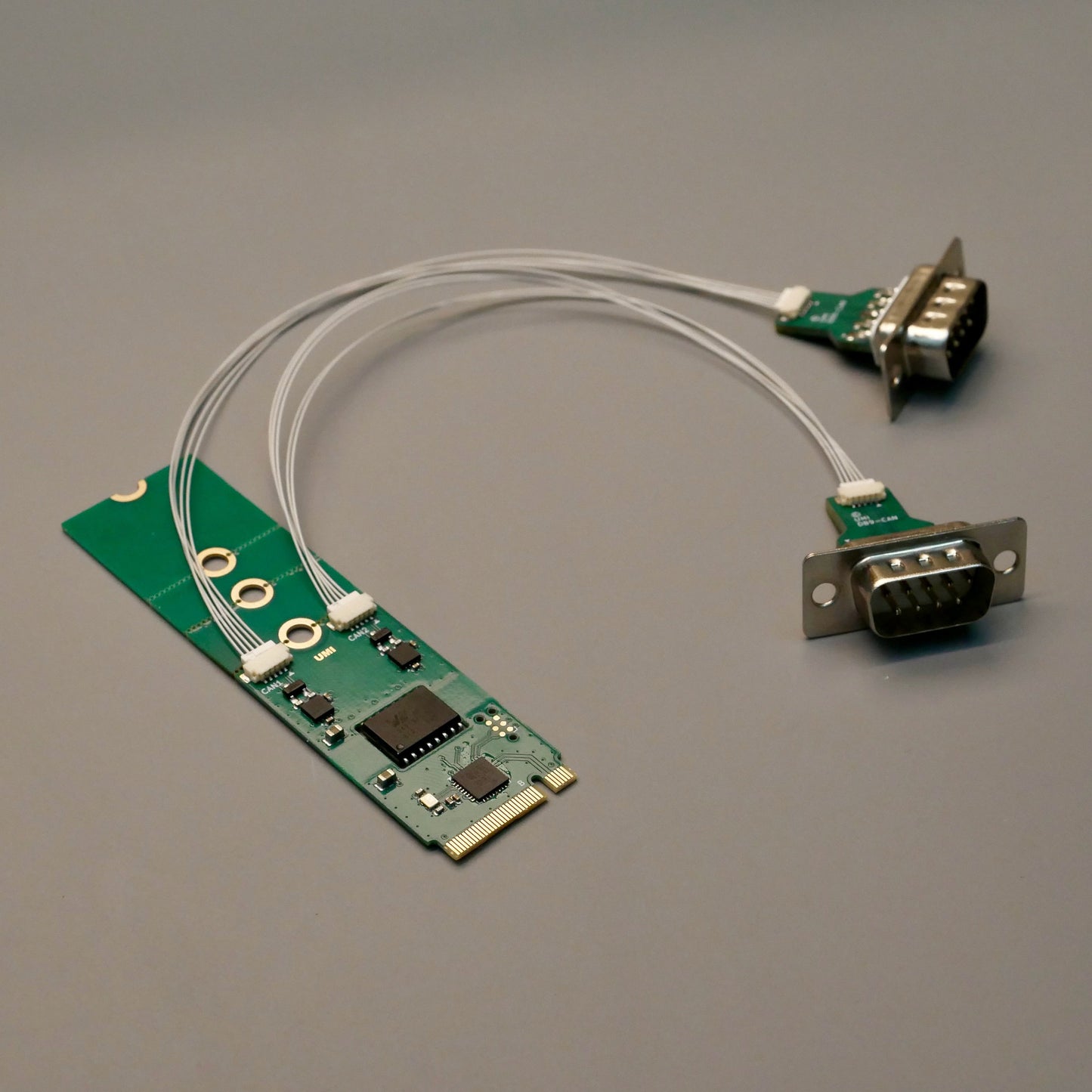

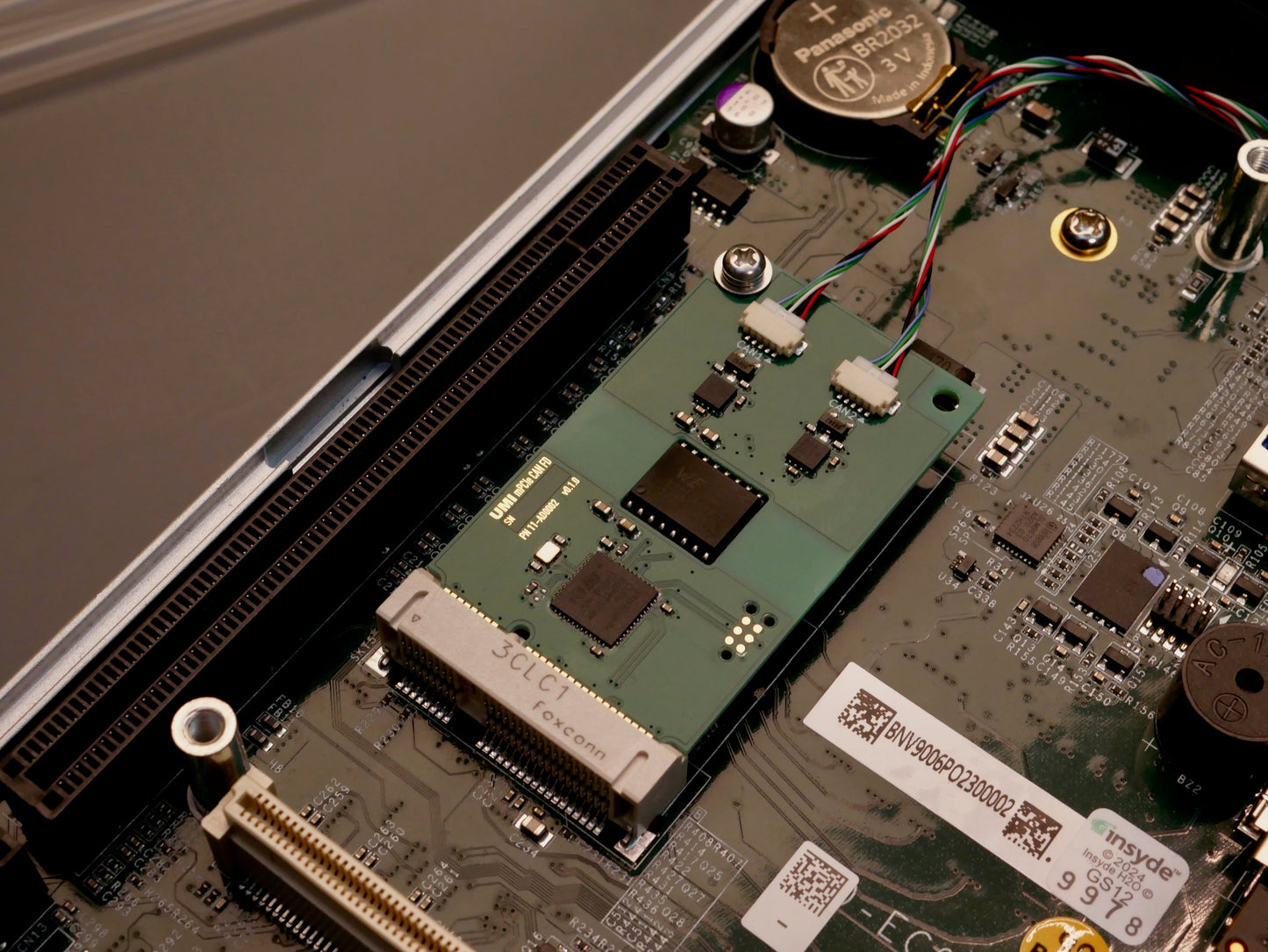

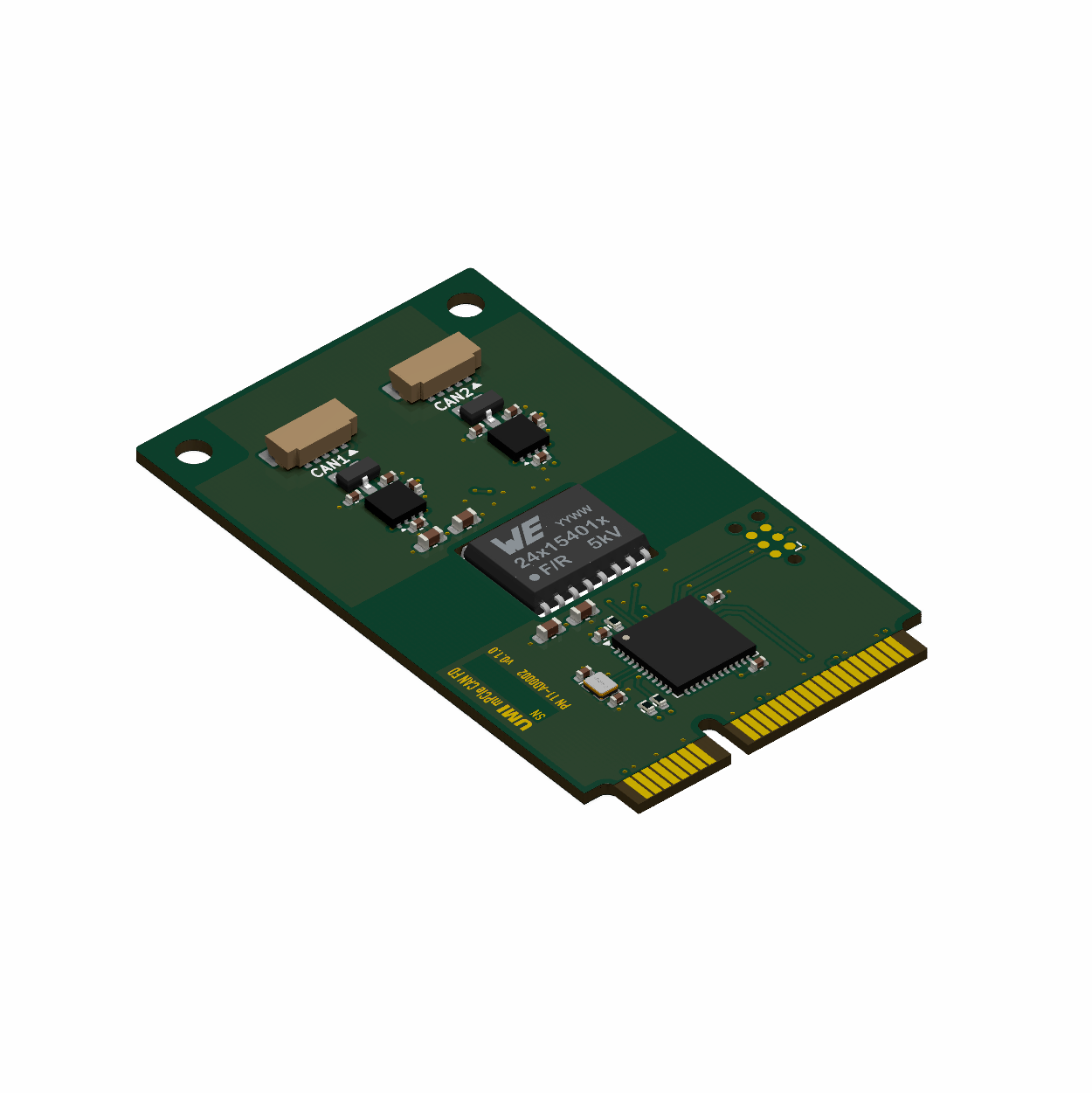

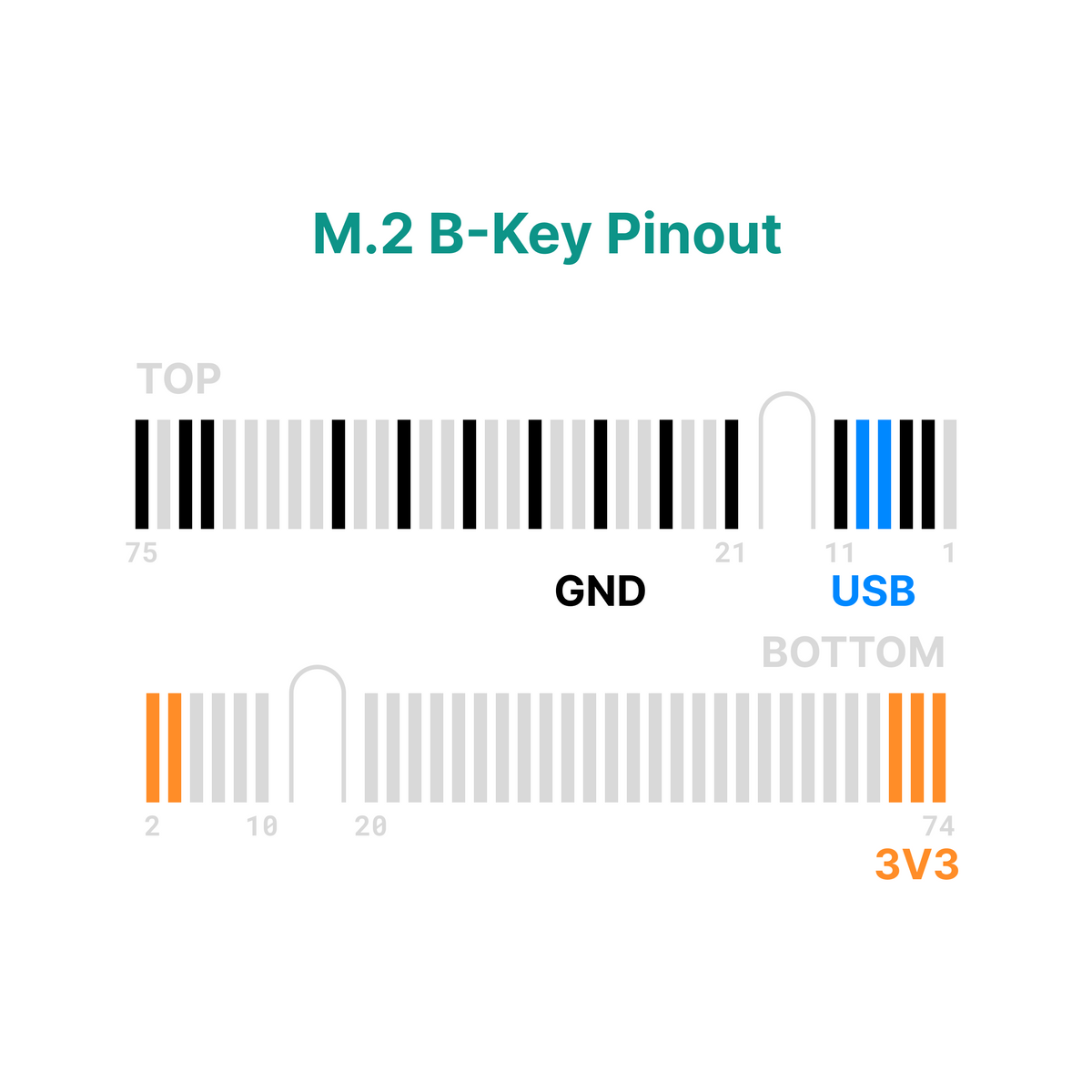

Add two high-speed CAN FD interfaces to your next project with our interface cards. Available in M.2 B-key and mini-PCIe variants with a slim form factor suitable for a wide range of compute solutions.

In-depth documentation and guides can be found here.

Features

  • Two CAN interfaces with speeds from 12.5 kbit/s to 8 Mbit/s
  • Supports both CAN FD and CAN 2.0B (ISO 11898-1)
  • M.2 and mPCIe form factors
  • Functional 5 kVRMS isolation between host and both interfaces
  • Transient protection suitable for 12, 24 and 48 V systems
  • No additional drivers required on Linux
  • Industrial -40 to +105 °C operating temperature range

Slim and Versatile

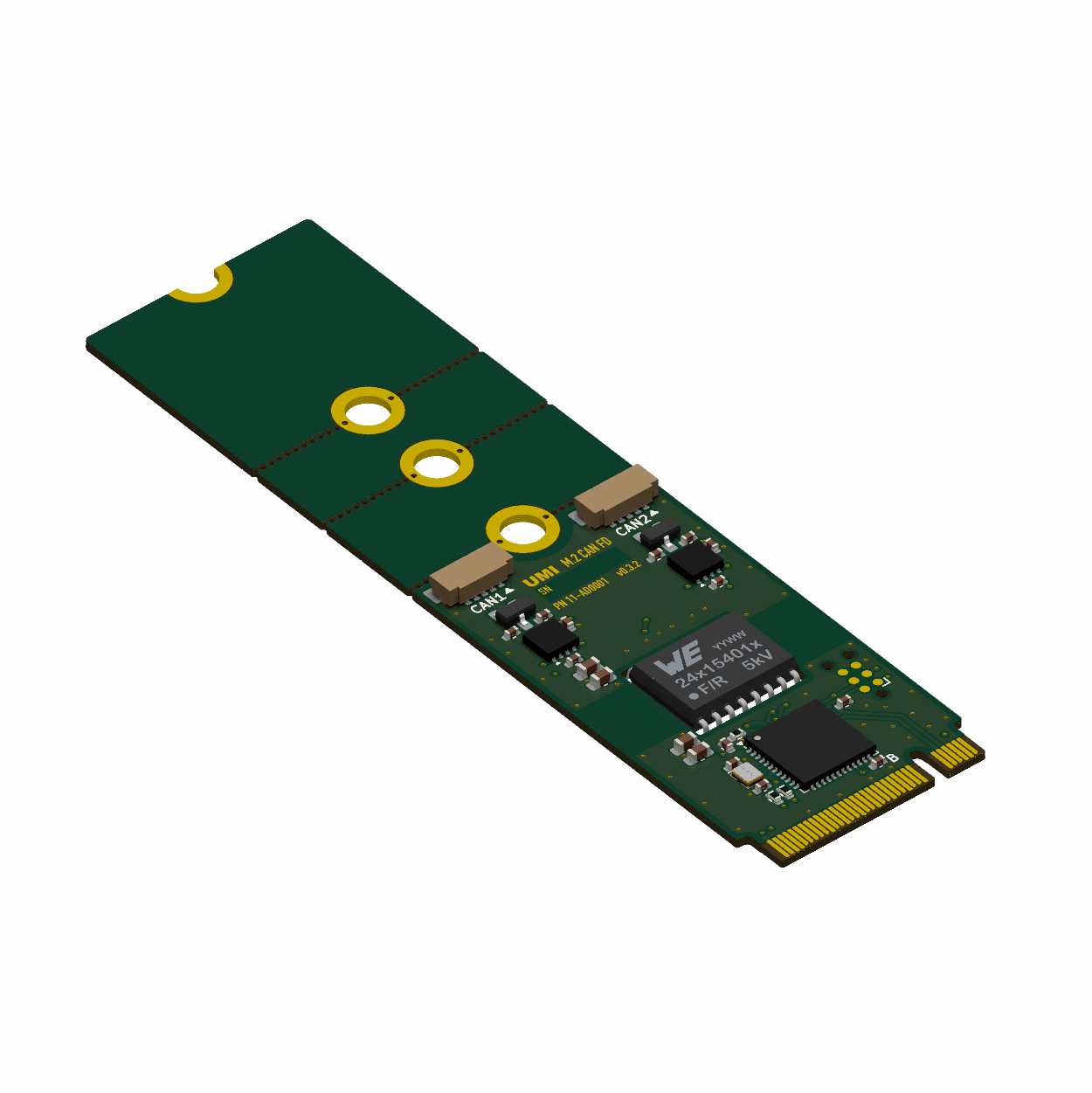

The adapter card is only 2.6mm (0.1") tall to ensure compatibility with all compute solutions. As well as this, the M.2 variants have a breakaway design to support 2242, 2252, 2260 and 2280 slot sizes.

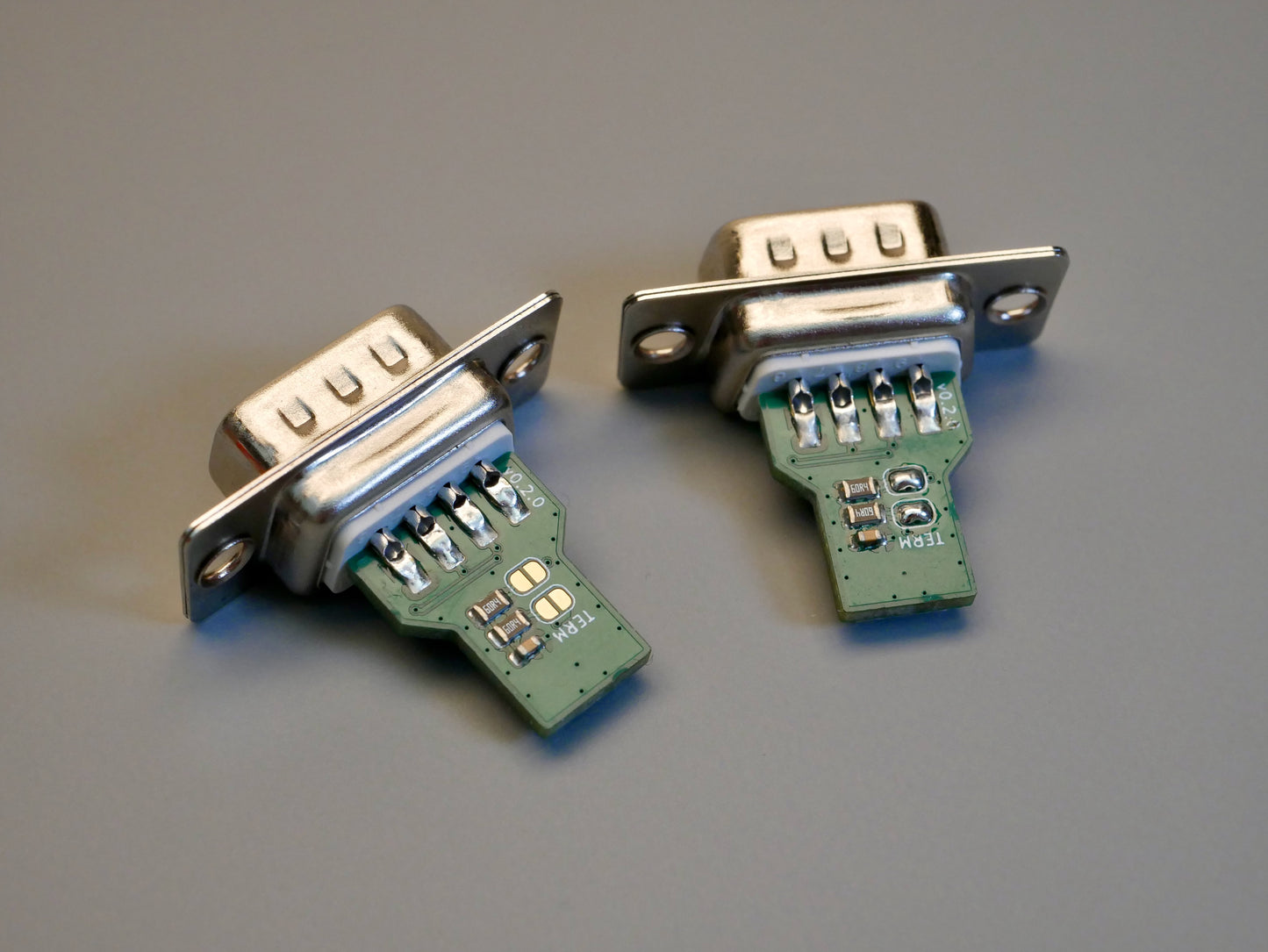

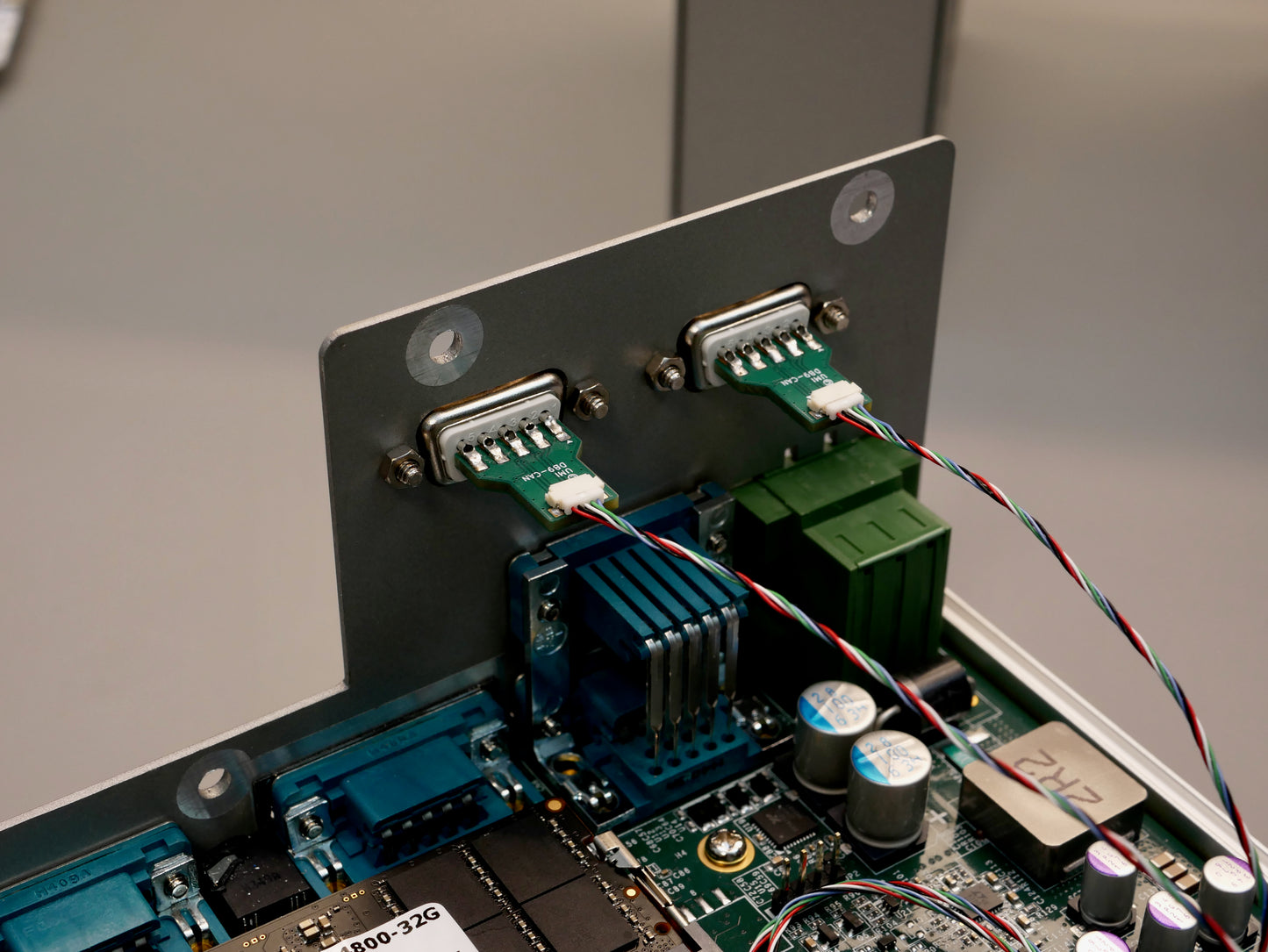

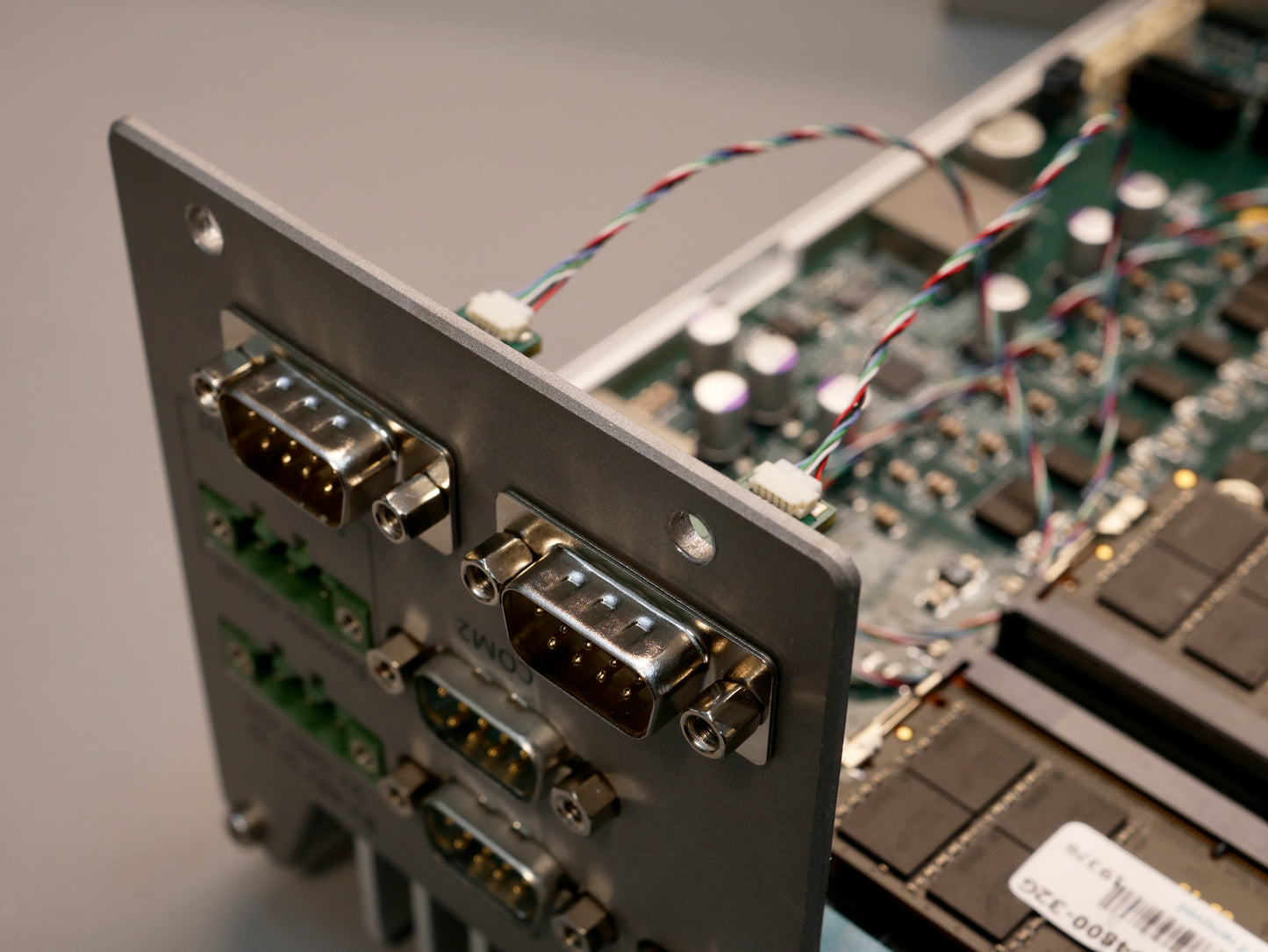

Breakout Connectors

Included with each adapter is your choice of breakout connectors. The pinout for each is available in the documentation.

Every breakout connector has termination solder-jumpers which use split termination for superior common-mode noise performance.

If you require something else, contact us and we'll organize a custom solution for your application.

Applications

  • Industrial monitoring and control
  • Robotics
  • Production line automation
  • Hardware-in-the-loop testing
  • Remote system access
  • Data logging
