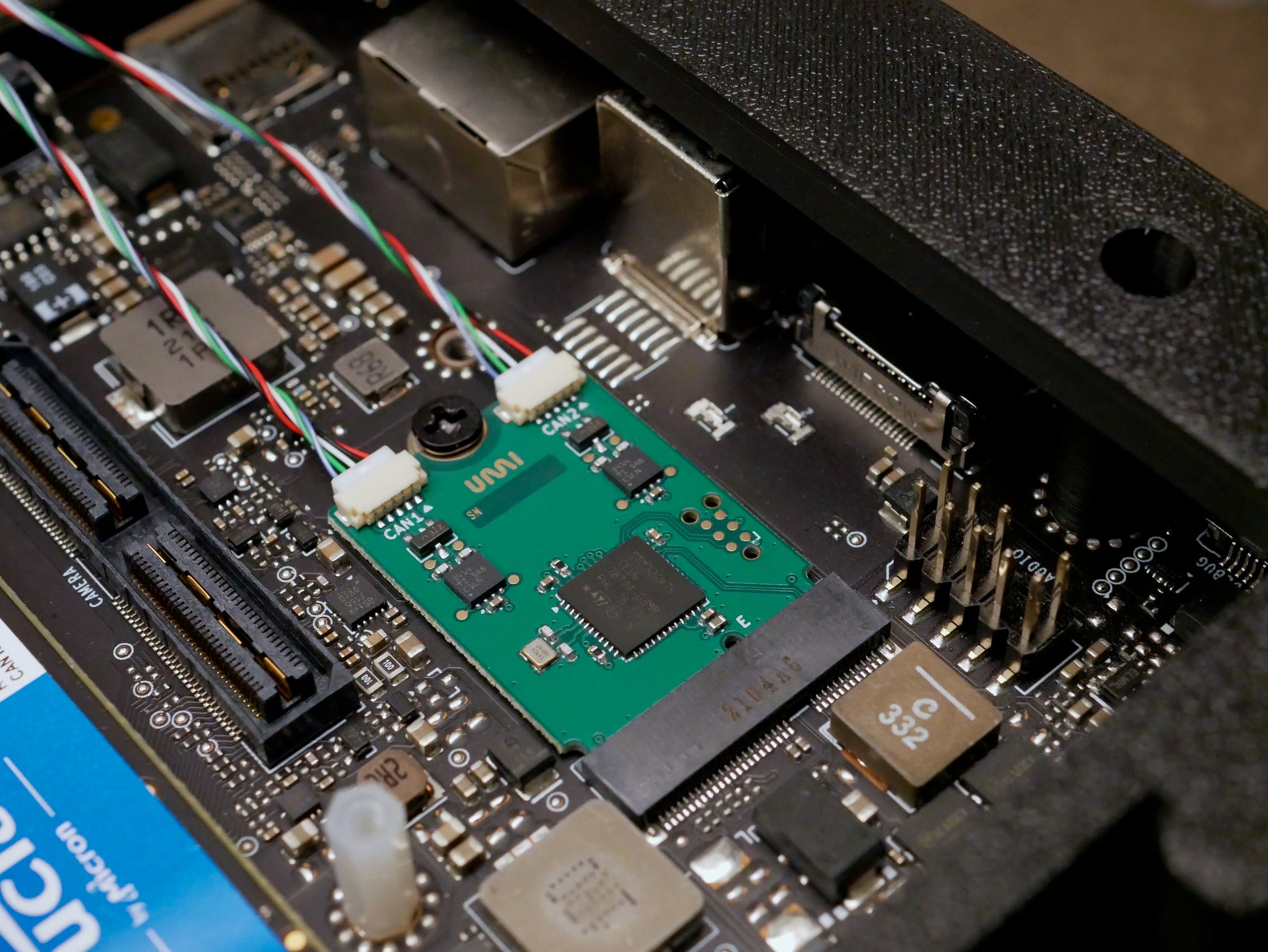

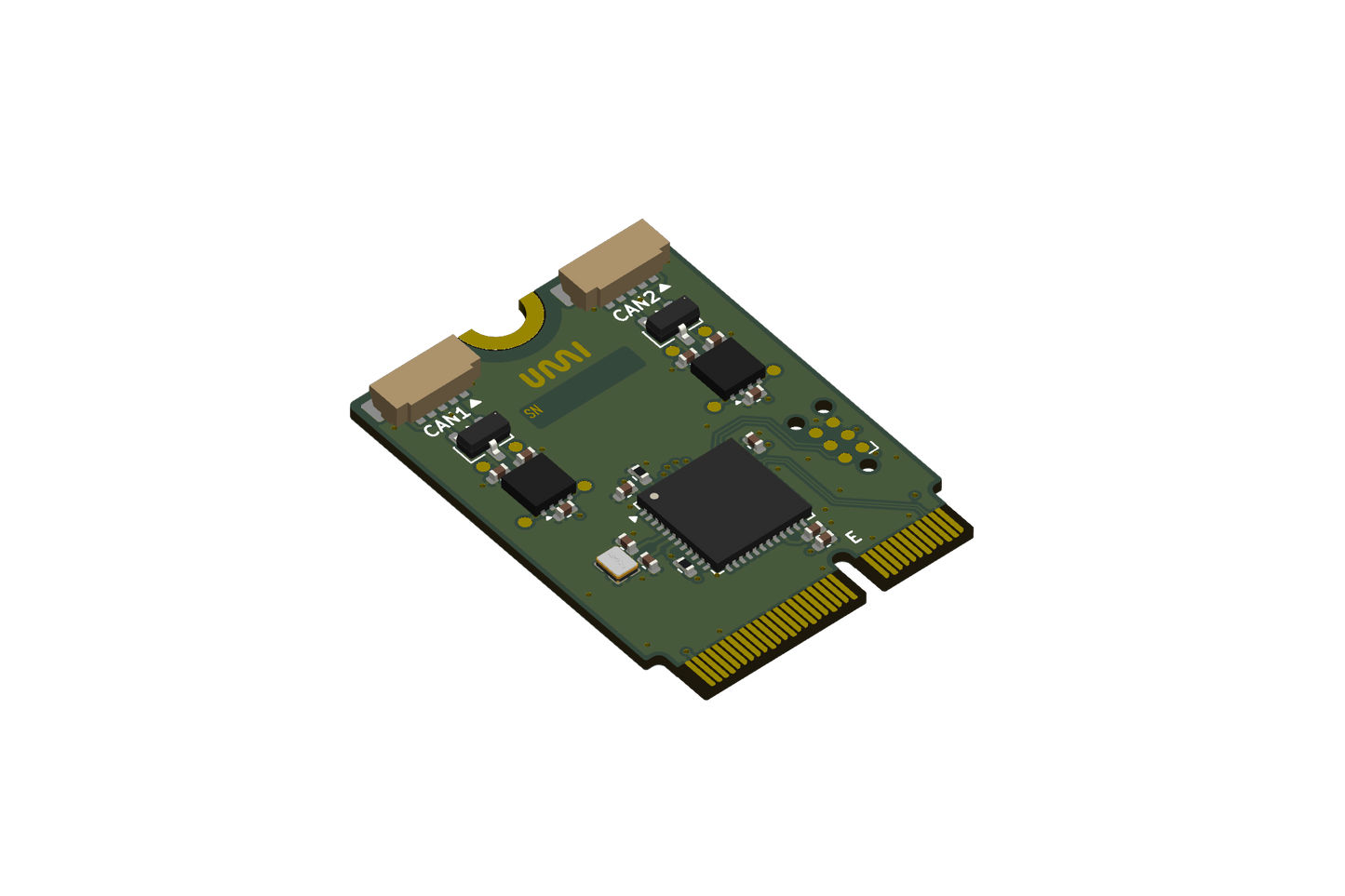

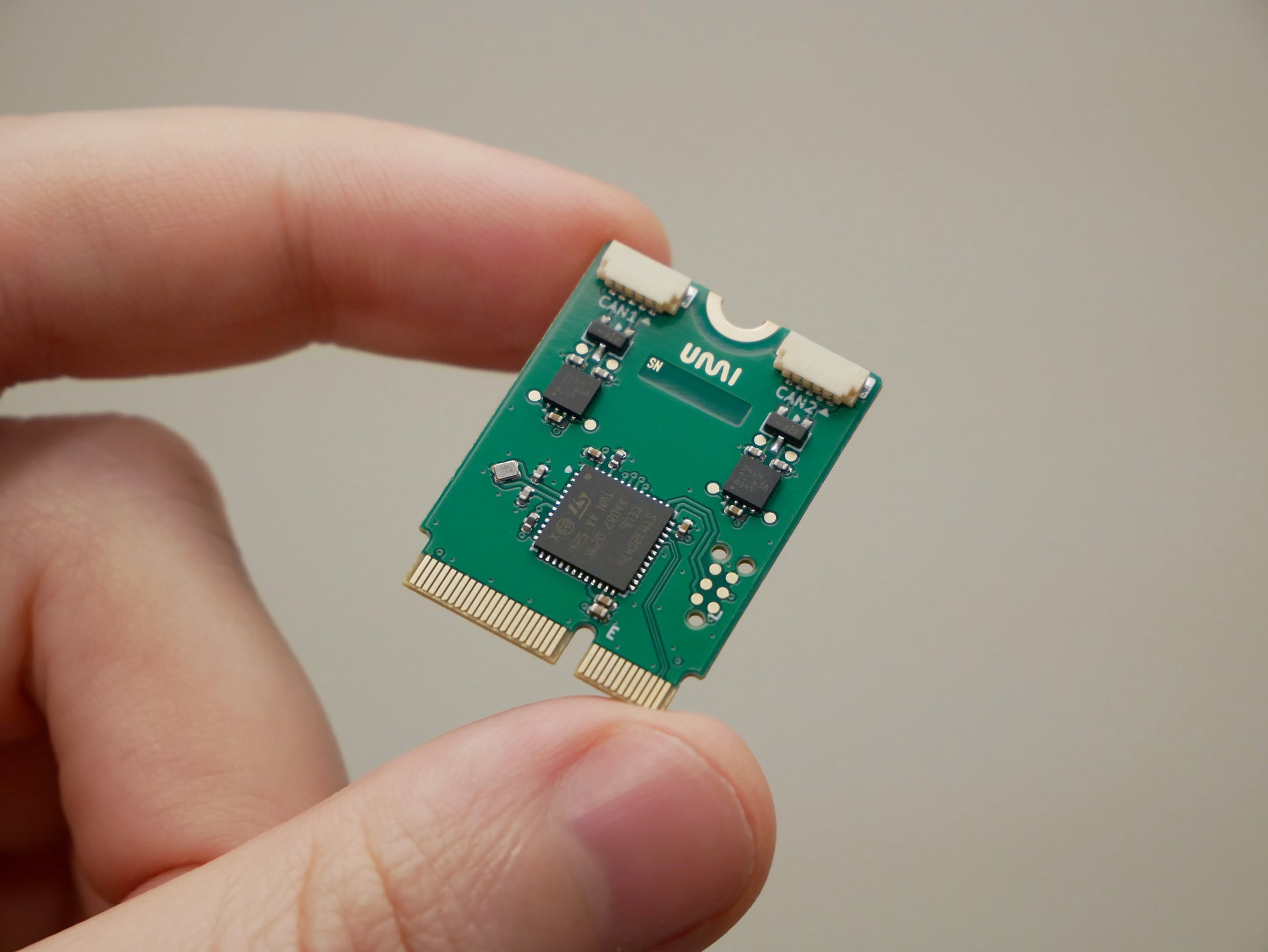

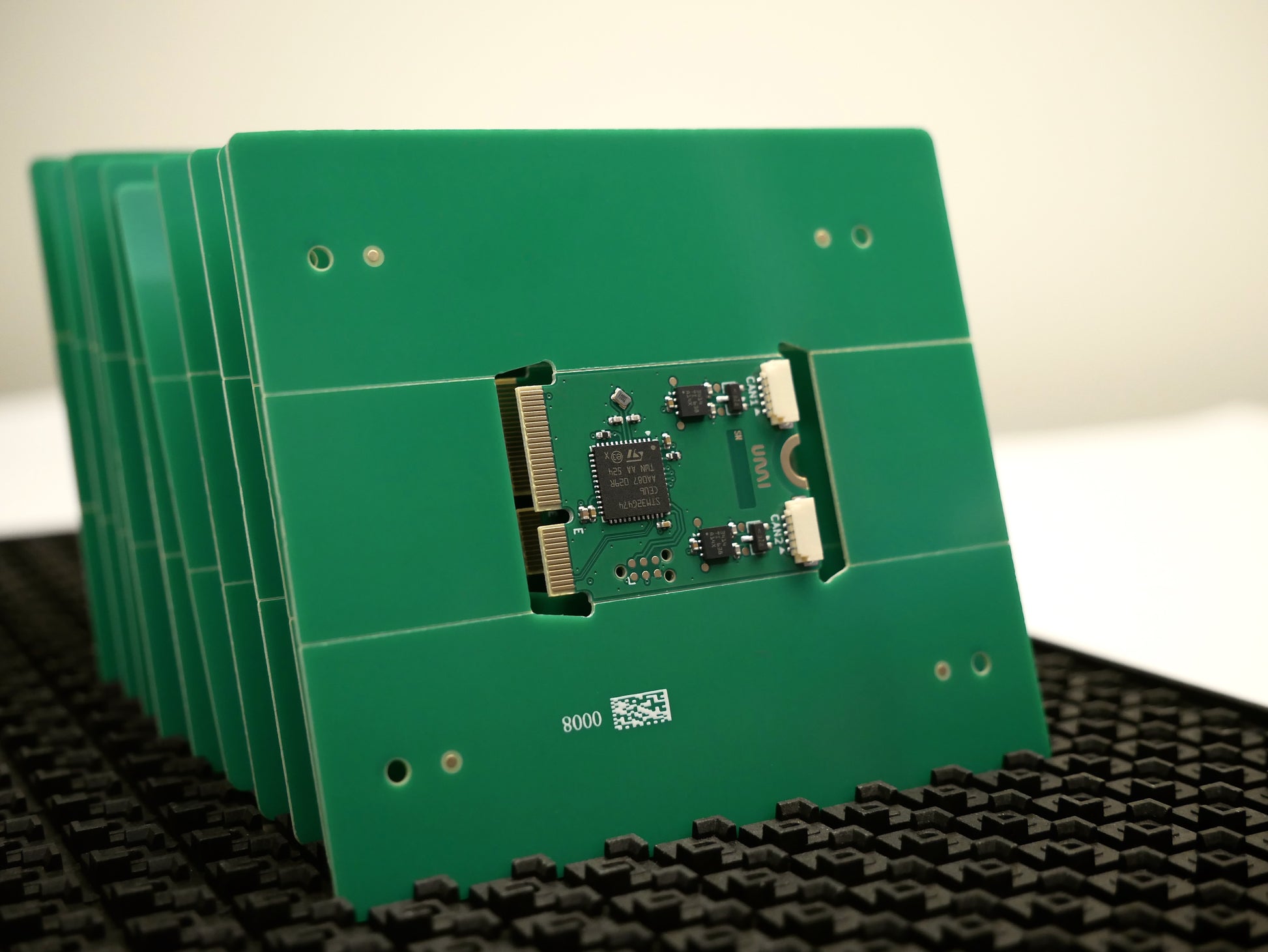

Add two high-speed CAN FD interfaces to your next project with our interface cards.

In-depth documentation and guides can be found here.

Features

• Two CAN interfaces with speeds from 12.5 kbit/s to 8 Mbit/s
• Supports both CAN FD and CAN 2.0B (ISO 11898-1)

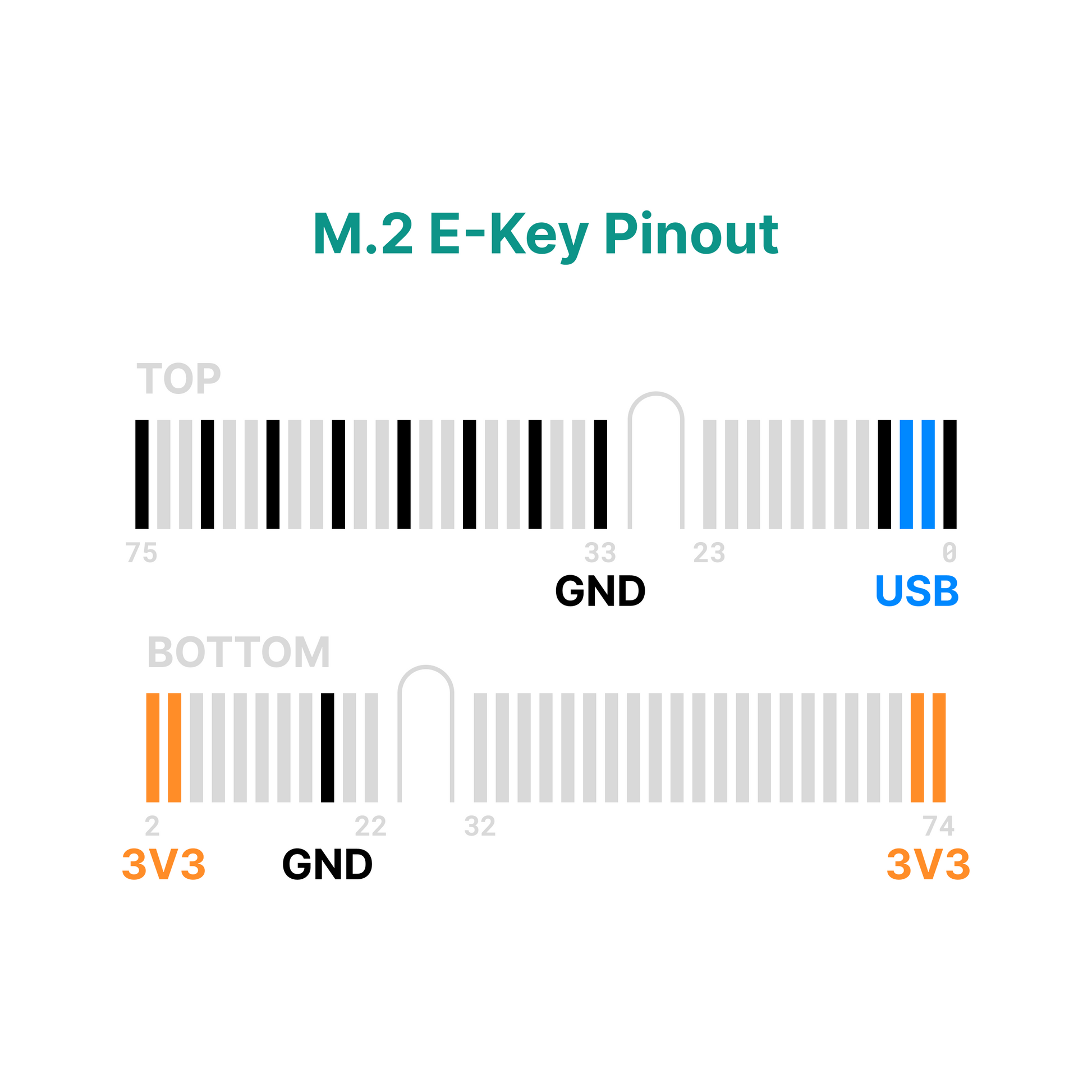

• M.2 E-Key 2230 size
• Transient protection suitable for 12, 24 and 48 V systems
• No additional drivers required on Linux

• Industrial -40 to +105 °C operating temperature range

• Open-source firmware

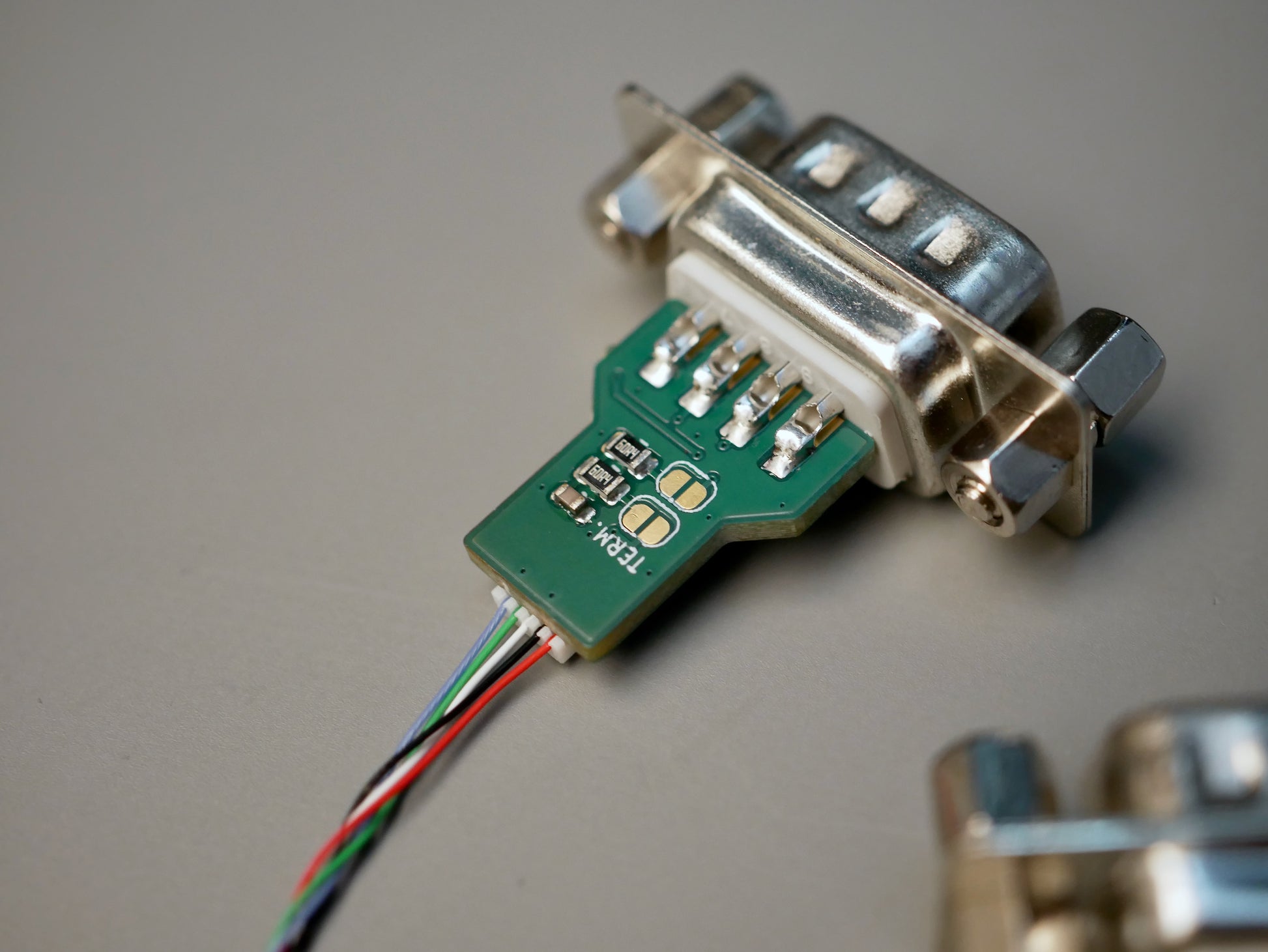

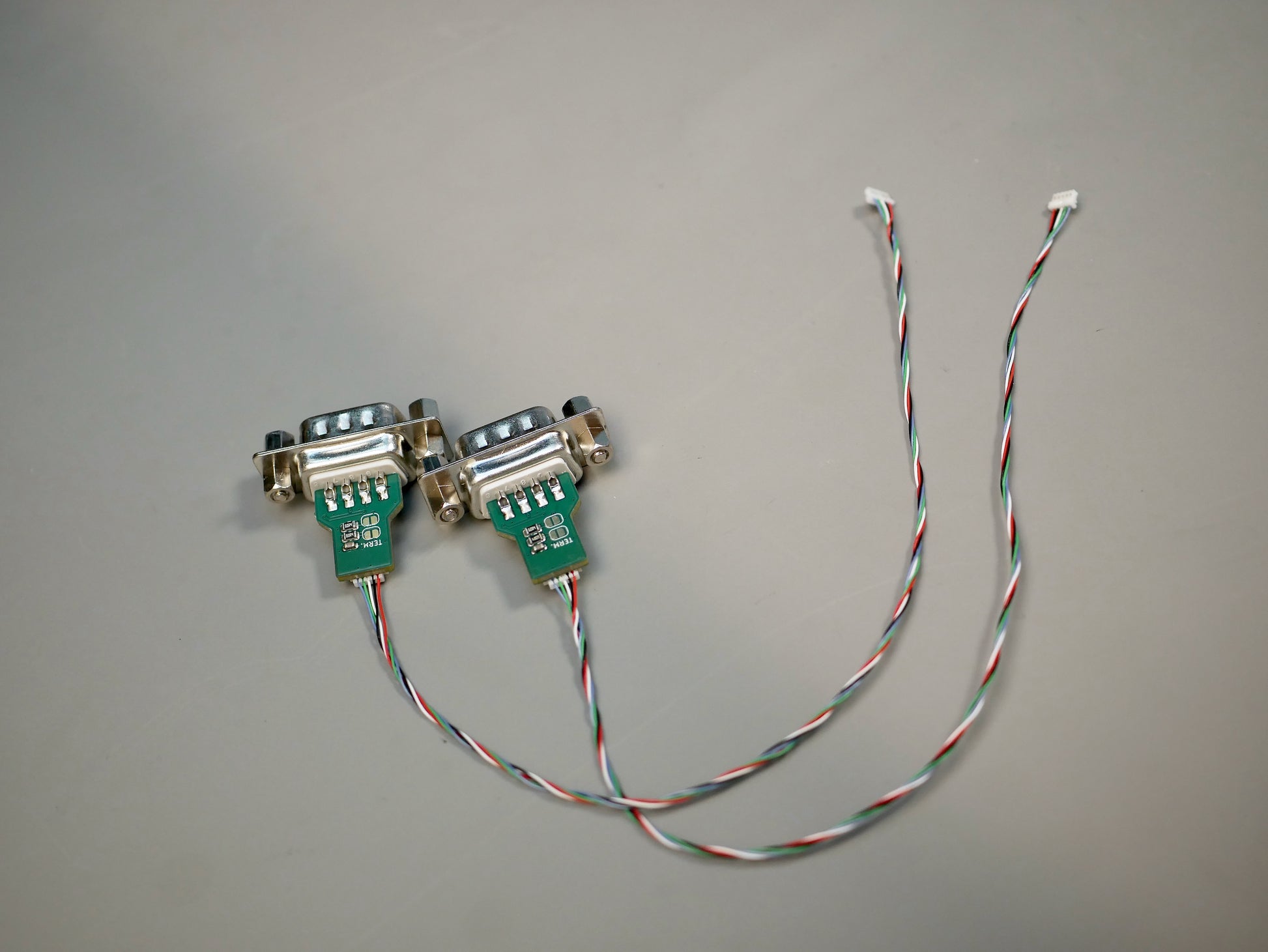

Breakout Connectors

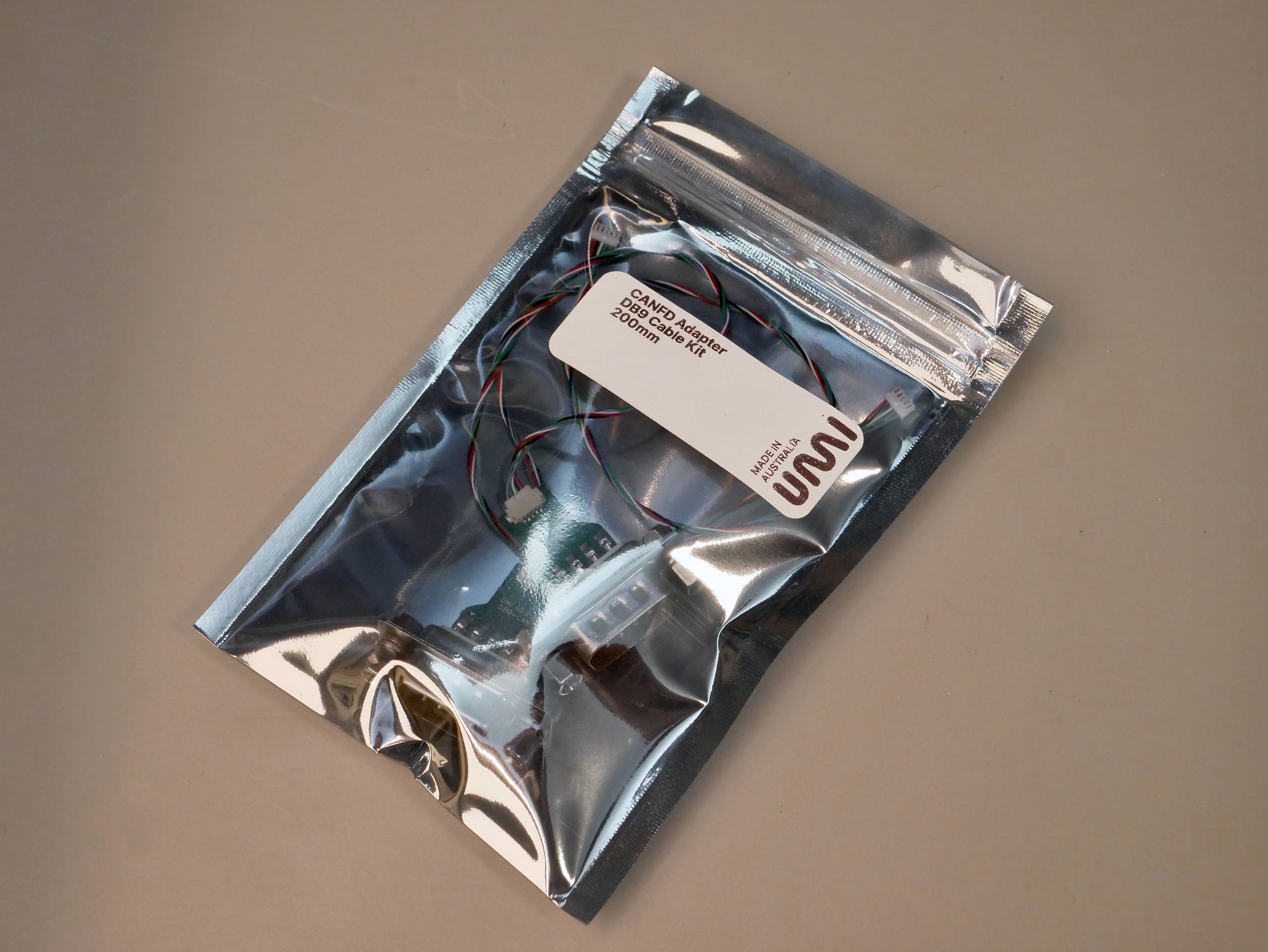

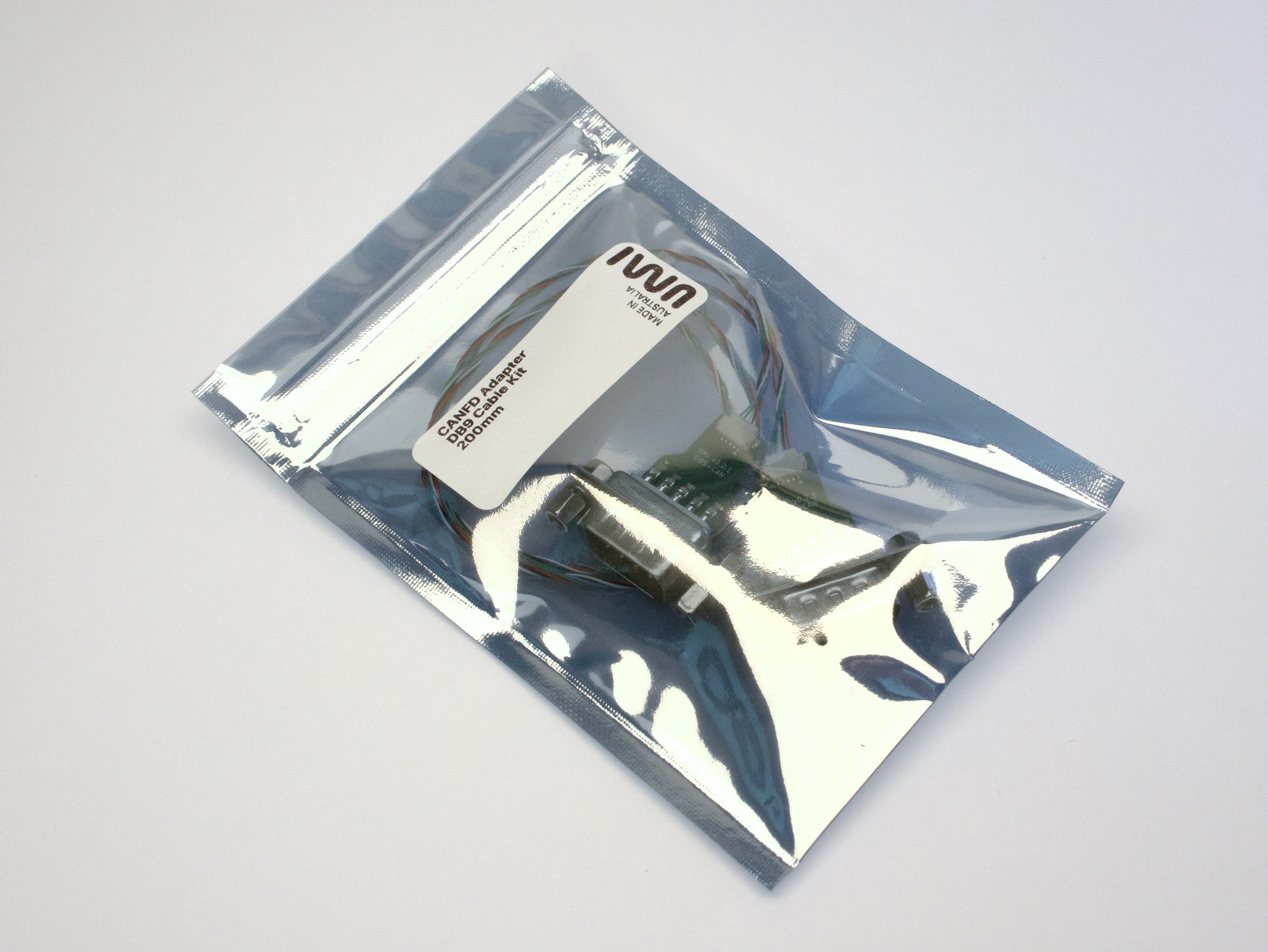

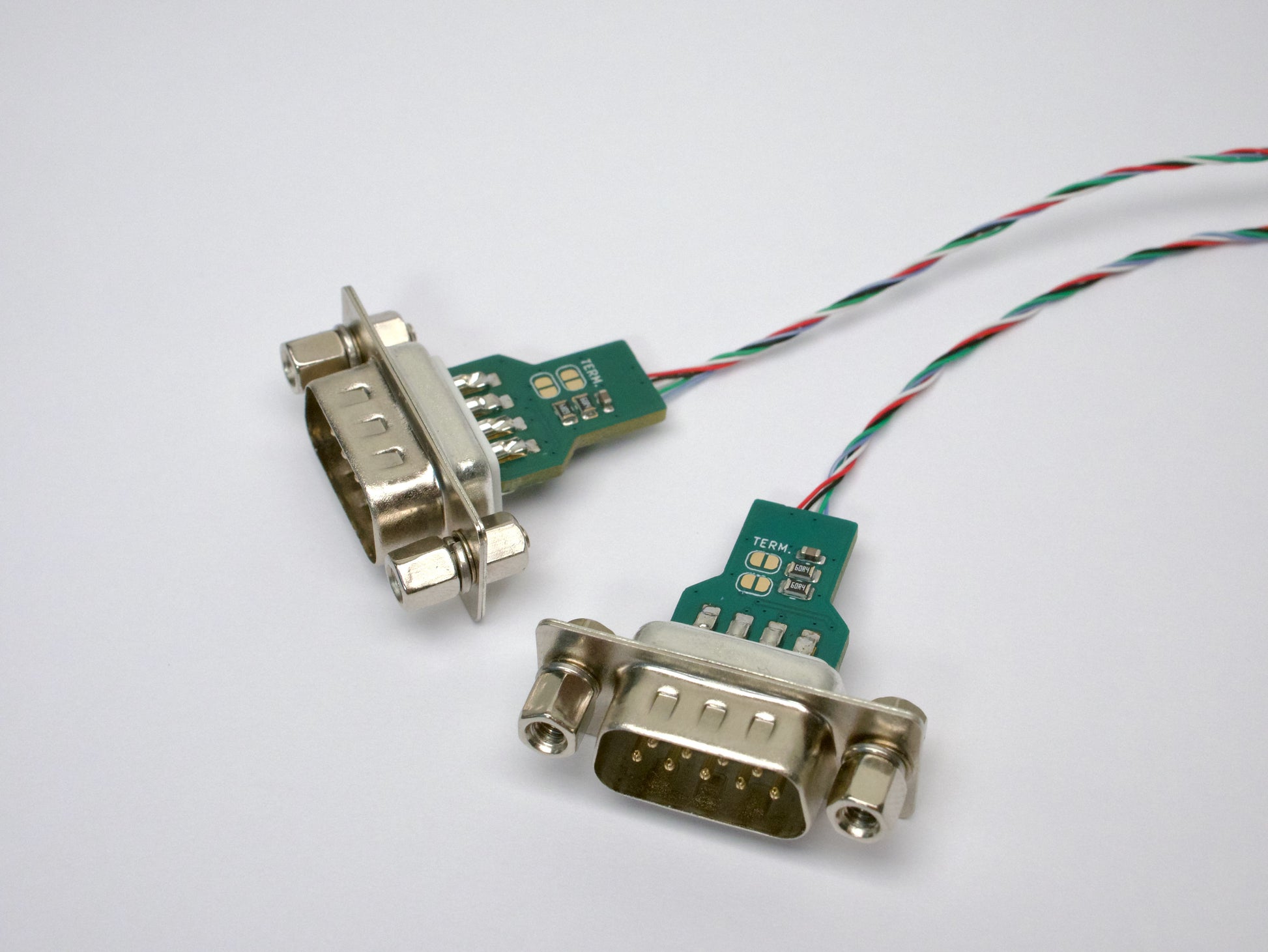

Included with each adapter is your choice of breakout connectors. The pinout for each is available in the documentation.

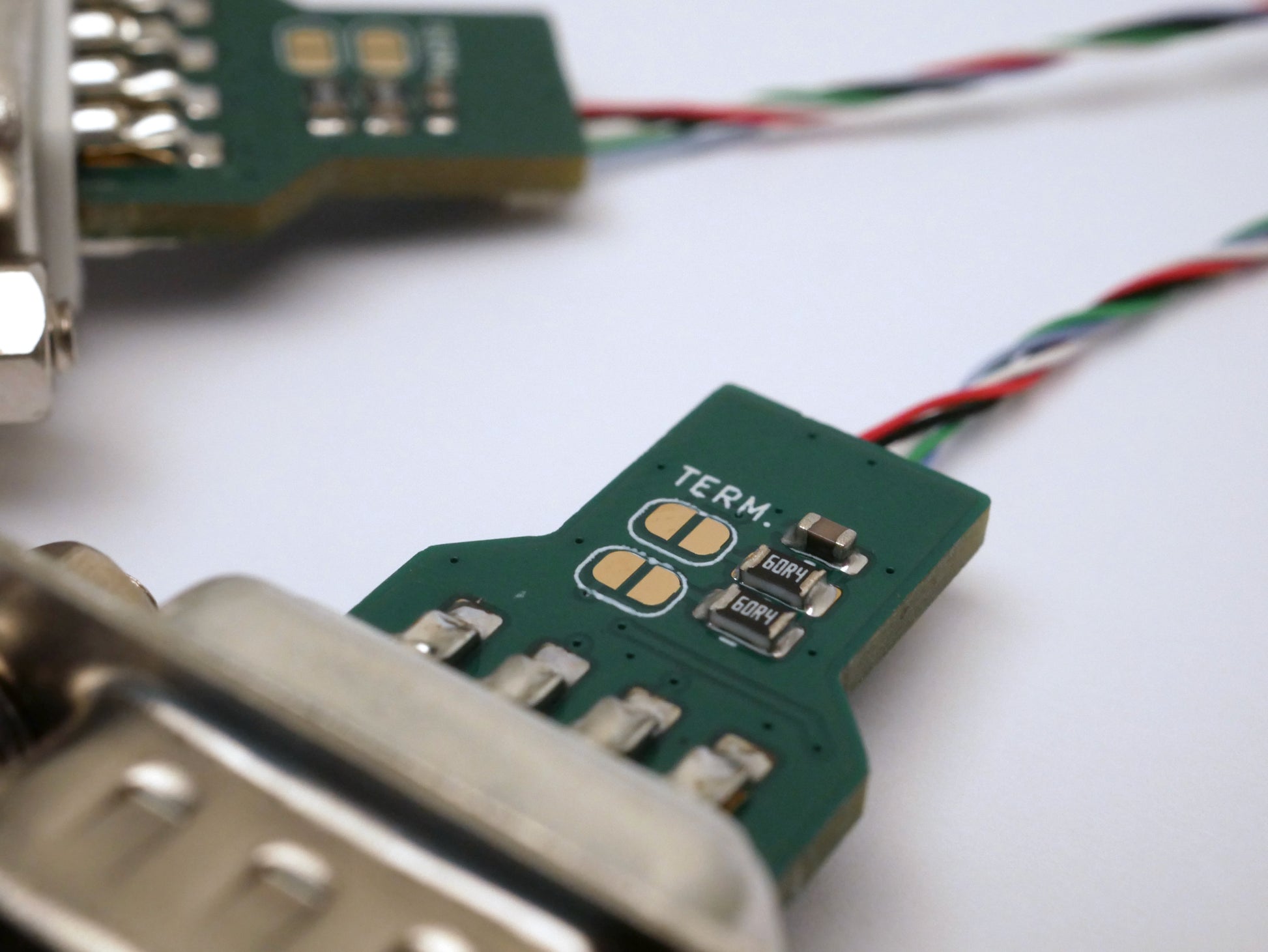

Every breakout connector has termination solder-jumpers which use split termination for superior common-mode noise performance.

If you require something else, contact us and we'll organize a custom solution for your application.

Applications

• Industrial monitoring and control
• Robotics
• Production line automation
• Hardware-in-the-loop testing
• Remote system access

• Data logging
