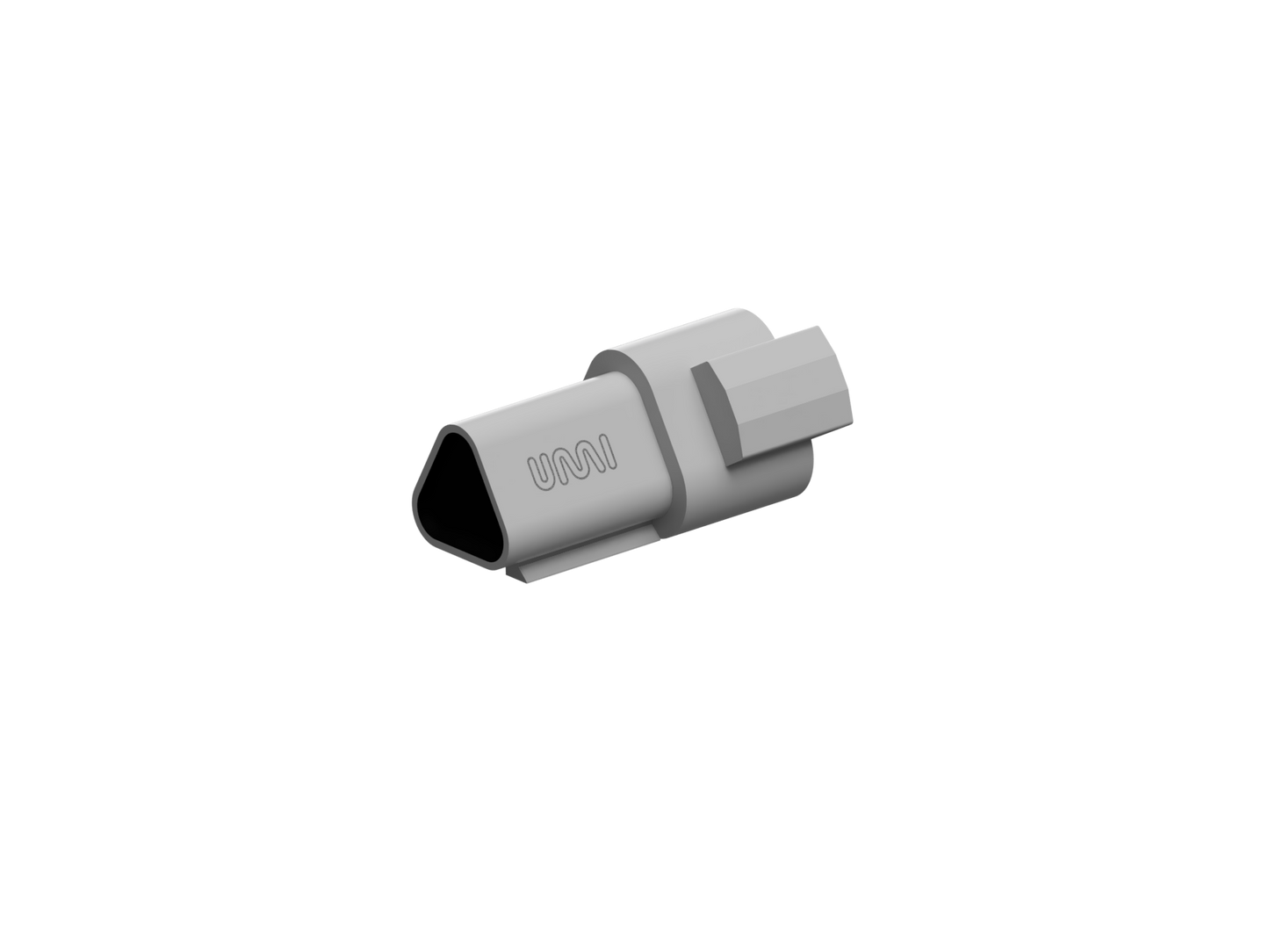

Plug with integrated split termination resistor suitable for all kinds of CAN networks.

Split termination provides superior EMI performance by filtering out common-mode noise. The filter has a cutoff frequency of 565kHz.

High-speed CAN FD networks can see a significant improvement in common mode noise using this termination plug.

Compatible with Deutsch mounting clips for better wiring harness management.

Features

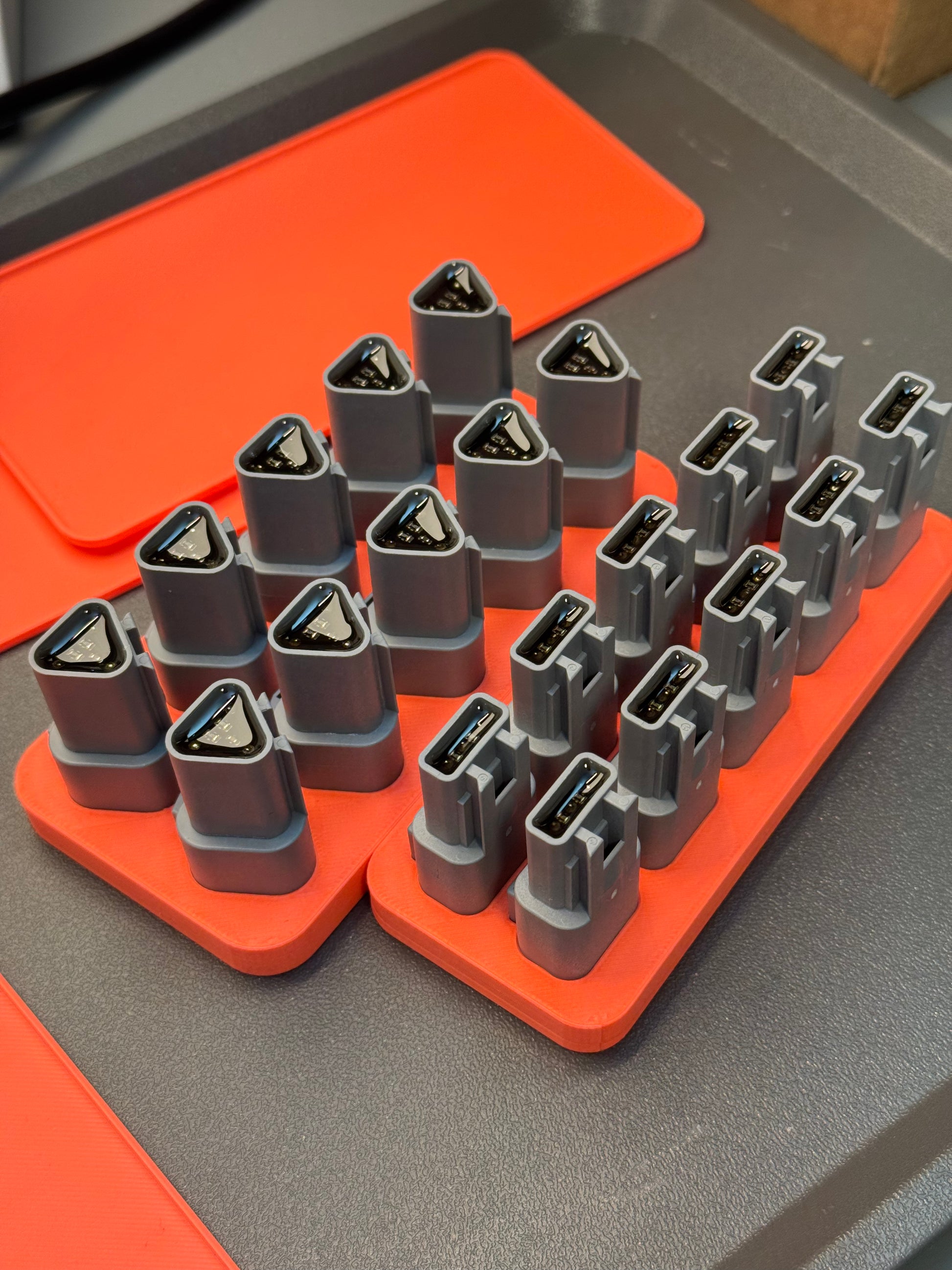

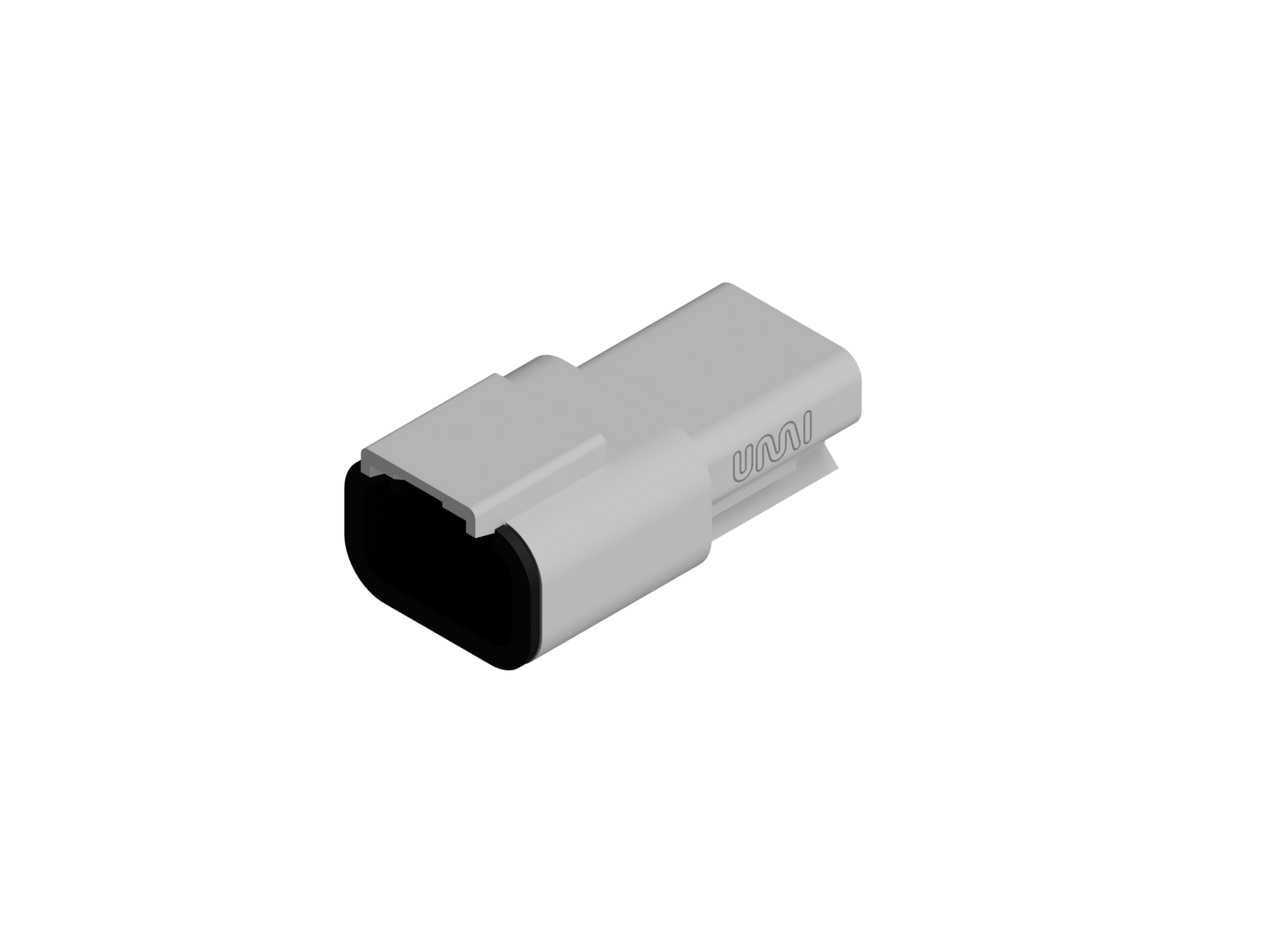

• Available in DT or DTM sizes
• Uses split termination
• Suitable for high speed bus data rates (>1Mbit/s)
• IP68 in mated condition
• Nickel plated contacts

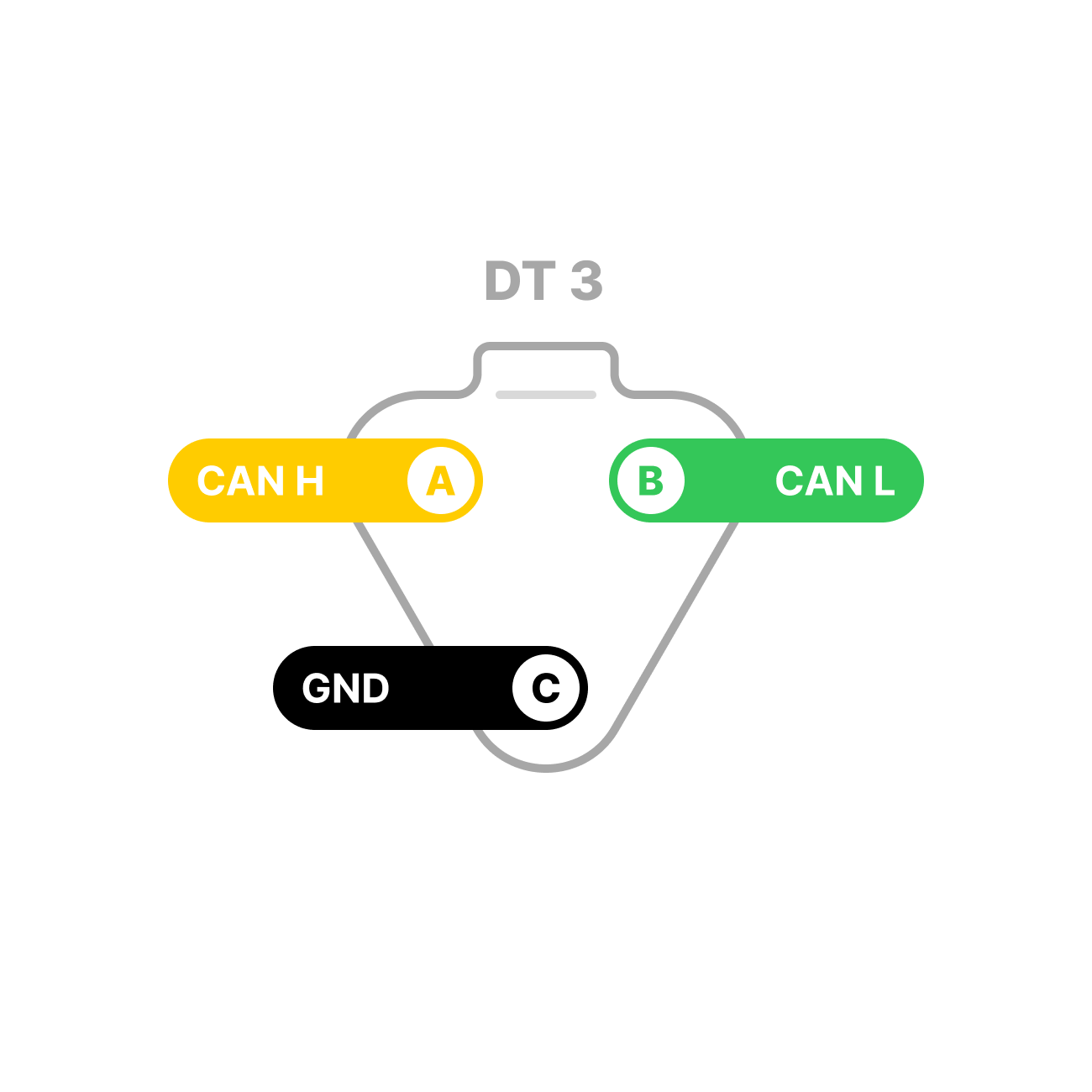

Schematic

Applications

• Aftermarket automotive
• Motorsport
• AgTech
• Robotics
• Mining
